Irobhothi lokuthutha i-SDCXRB-03A1/RB06-900/ RB08/ RB08A3-1490/ RB08A3-1700/ RB08A3-1840/ RB10/ RB20/ RB50/ RB130/ RB165/ RB210

Isingeniso esifushane somkhiqizo

Amarobhothi ezimboni zokuthutha asetshenziswa kakhulu ekugayeni, ekupholisheni, ekulayisheni nasekufakeni amathuluzi omshini, ekuthuthweni okuzenzakalelayo kokufaka izitembu emigqeni yokukhiqiza okuzenzakalelayo, njll. Irobhothi lokuthutha liwumkhiqizo ozenzakalelayo osebenzisa ithrekhi yokunyakaza yerobhothi ukuze lithathe indawo yezokuthutha ngesandla. Inzuzo yalo ukuthi lingafeza zonke izinhlobo zemisebenzi elindelekile ngokuhlela. Lihlanganisa izinzuzo zomuntu kanye nomshini esakhiweni salo kanye nokusebenza kwalo, ikakhulukazi elihlanganisa ubuhlakani bokwenziwa kanye nokuzivumelanisa nezimo.

XHUMANA NATHI

Imininingwane Yomkhiqizo

Amathegi Omkhiqizo

Amapharamitha Obuchwepheshe

Inombolo Yemodeli		Izinga Lenkululeko	Imodi yokushayela	Umthwalo wokukhokha (kg)	Ukunemba kokubekwa okuphindaphindiwe (mm)	Ububanzi bokunyakaza (°)						Isivinini esiphezulu (°/s)						I-torque ephezulu evumelekile (N. m)			Irediyasi yokunyakaza (mm)	Isisindo se-Deaa (kg)
Inombolo Yemodeli		Izinga Lenkululeko	Imodi yokushayela	Umthwalo wokukhokha (kg)	Ukunemba kokubekwa okuphindaphindiwe (mm)	J1	J2	J3	J4	J5	J6	J1	J2	J3	J4	J5	J6	J4	J5	J6	Irediyasi yokunyakaza (mm)	Isisindo se-Deaa (kg)

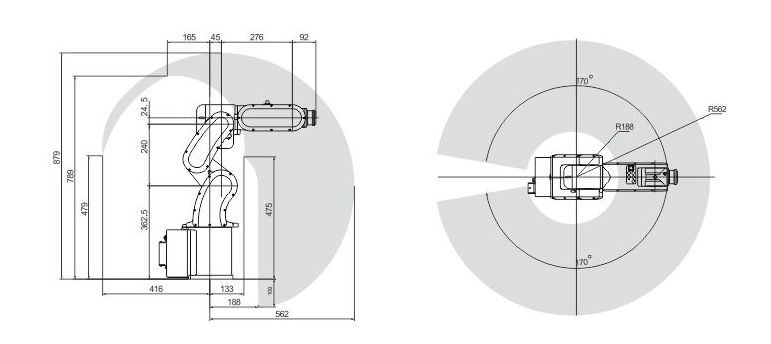

I-SDCX-RB03A1		6	Idrayivu ye-servo ye-AC	3	±0.02	±150	+136~-51	+64~-131	±150	±120	±360	375	375	419	600	600	750	9.3	9.3	4.5	562	36

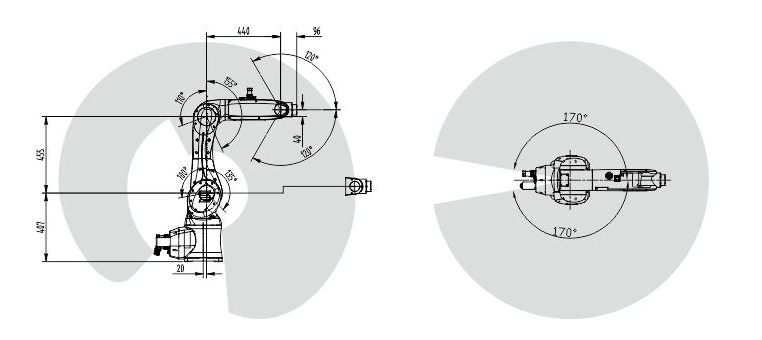

I-SDCX-RB06-900		6	Idrayivu ye-servo ye-AC	6	±0.03	±170	+135~100	+155~110	±170	±120	±360	337.5	270	375	300	375	468	12	10	6	900	60
I-SDCX-RB08		6	Idrayivu ye-servo ye-AC	8	±0.05	±170	+120~-85	+75~-155	±180	±135	±360	154	154	154	420	252	620	14	12	7	1389	180

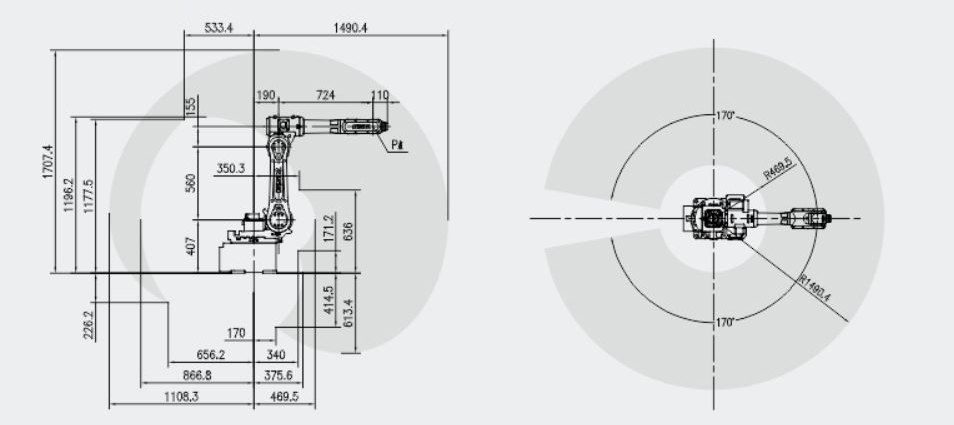

I-SDCX-RB08A3-1490		6	Idrayivu ye-servo ye-AC	8	±0.05	±170	+120~-85	+83~-150	±180	±135	±360	200	200	200	400	356	600	14	12	7	1490	185

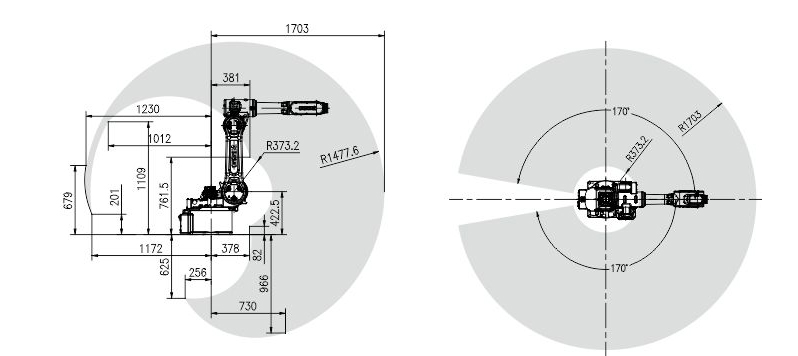

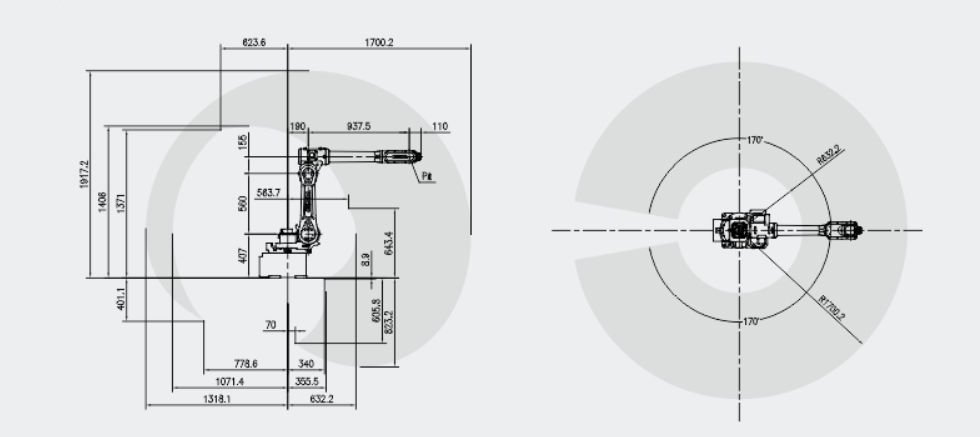

I-SDCX-RB08A3-1700		6	Idrayivu ye-servo ye-AC	8	±0.05	±170	+120~-85	+83~-150	±180	±135	±360	180	180	180	400	356	600	14	12	7	1700	187

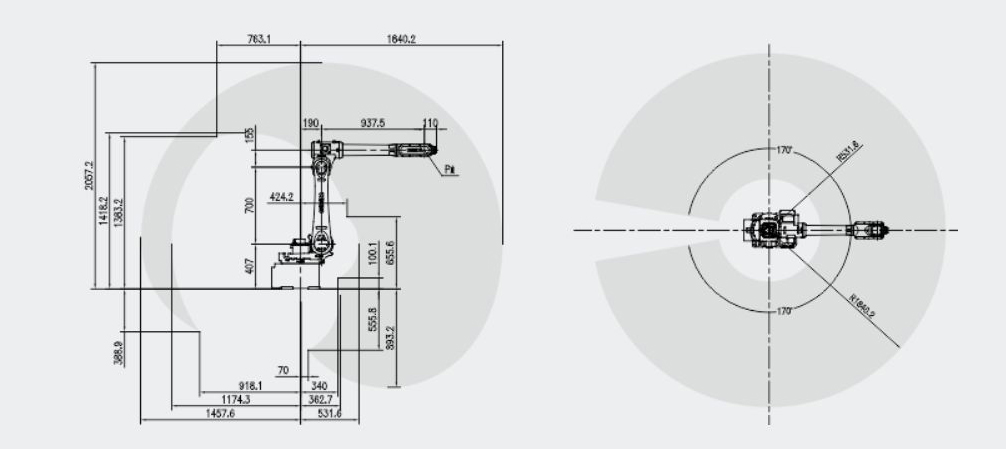

I-SDCX-RB08A3-1840		6	Idrayivu ye-servo ye-AC	6	±0.05	±170	+120~-85	+83~-150	±180	±135	±360	160	160	160	400	356	600	14	12	7	1840	180
I-SDCX-RB10		6	Idrayivu ye-servo ye-AC	10	±0.05	±170	+150~-85	+85~-170	±360	±120	±360	200	160	200	360	360	600	43.2	43.2	25.4	1550	240

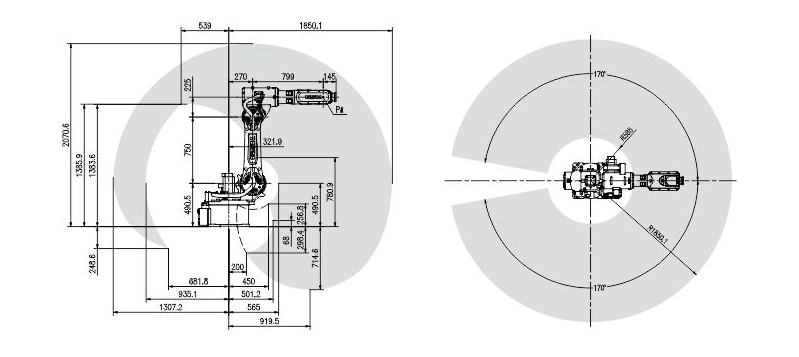

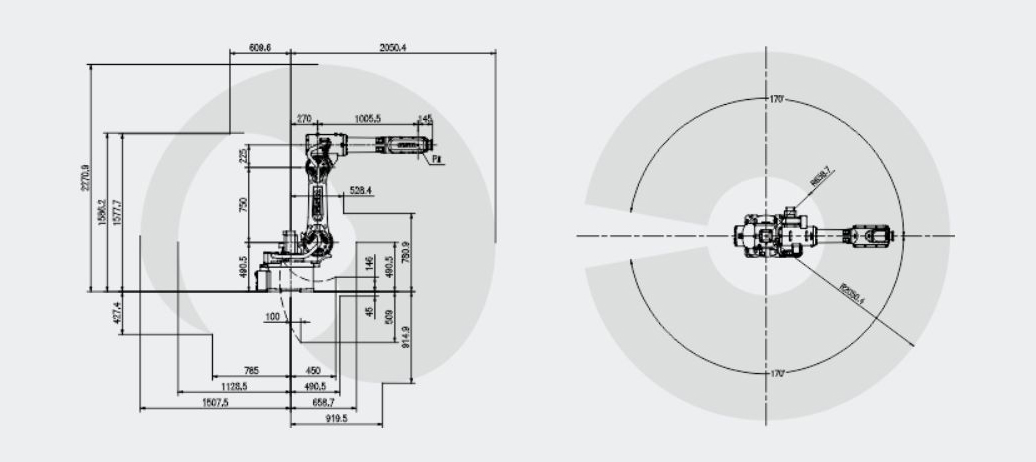

Uchungechunge lwe-SDCX-RB20	I-SDCX-RB06-2060	6	Idrayivu ye-servo ye-AC	6	±0.05	±170	+145~-100	+75~-165	±180	±135	±360	165	165	170	300	356	600	40	12	7	2060	285
	I-SDCX-RB15L	6	Idrayivu ye-servo ye-AC	15	±0.05	±170	+145~-100	+75~-165	±180	±133	±360	165	165	170	300	198	394	40	50	22	1794	300

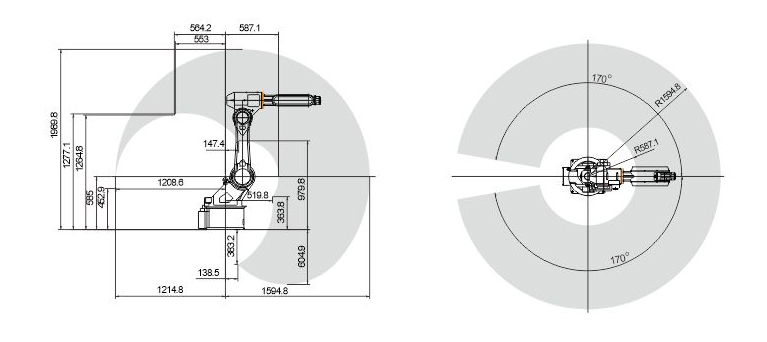

	I-SDCX-RB20	6	Idrayivu ye-servo ye-AC	20	±0.05	±170	+132~-95	+73~-163	±180	±133	±360	165	165	170	300	198	394	40	50	22	1595	290
I-SDCX-RB50		6	Idrayivu ye-servo ye-AC	50	±0.05	±178	+130~-90	+75~-200	±360	±115	±360	171	171	171	215	251	365	196	196	127	1956	600

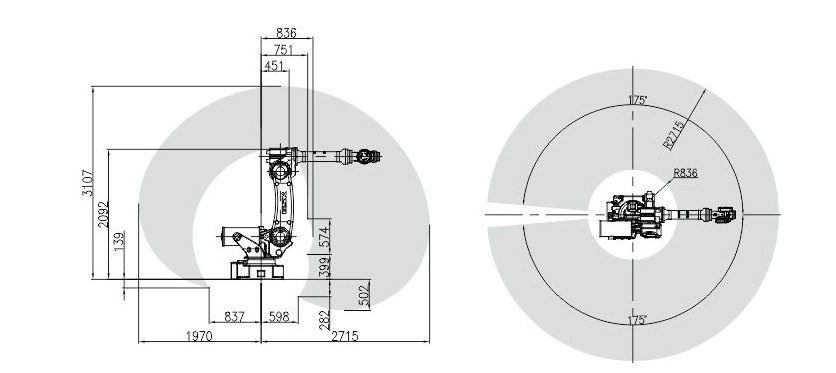

I-SDCX-RB130		6	Idrayivu ye-servo ye-AC	130	±0.20	±175	+75~-60	+80~-185	±360	±115	±360	100	94	104	165	174	238	951	951	490	2715	1420

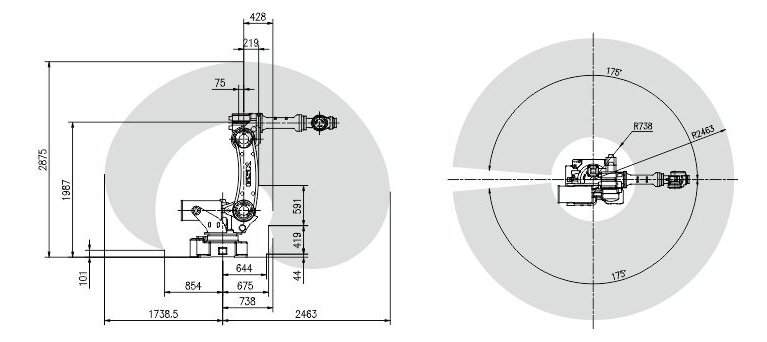

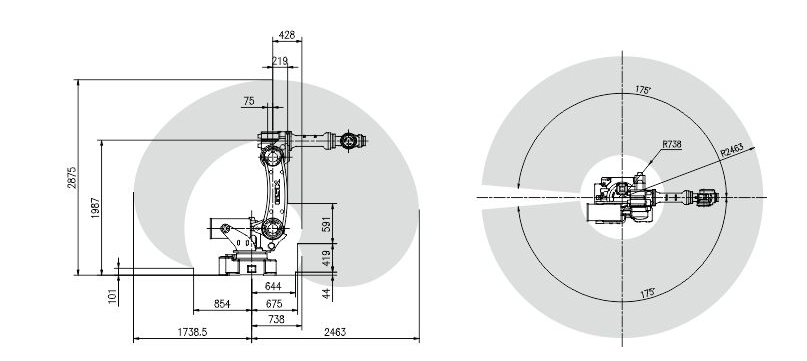

I-SDCX-RB165		6	Idrayivu ye-servo ye-AC	165	±0.20	±175	+75~-60	+80~-185	±360	±115	±360	100	94	104	152	160	220	951	951	490	2463	1400
I-SDCX-RB210		6	Idrayivu ye-servo ye-AC	210	±0.20	±175	+75~-60	+80~-185	±360	±115	±360	100	94	104	144	118	200	1274	1274	686	2463	1430

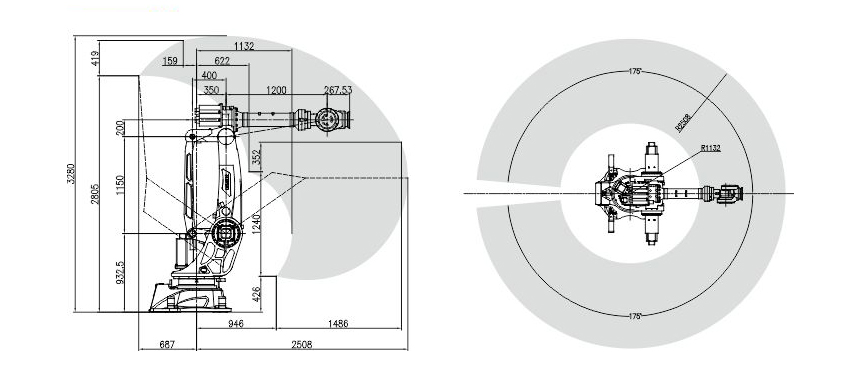

I-SDCX-RB300		6	Idrayivu ye-servo ye-AC	300	±0.20	±175	±55	+116~-85	±360	±115	±360	85	95	95	120	120	180	1274	1274	686	2508	1500

Gwema ukuthintana namagesi kanye noketshezi oluvuthayo, oluqhumayo nolubolile; Ungachithwa ngamanzi, uwoyela kanye nothuli; Gcina kude nemithombo yomsindo kagesi (i-plasma)
